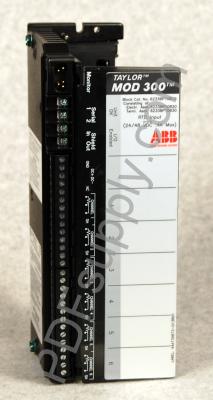

ABB Taylor Mod 300 | 623 624 Series | 6233BP10830 | Image

SKU 2174426  UPC 012992320103

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6233BP10830 6233BP10830A6233BP10830B6233BP10830C6233BP10830D6233BP10830E6233BP10830F6233BP10830G6233BP10830H6233BP10830I6233BP10830J6233BP10830K6233BP10830L6233BP10830M6233BP10830N6233BP10830O6233BP10830P6233BP10830Q6233BP10830R6233BP10830S6233BP10830T6233BP10830U6233BP10830V6233BP10830W6233BP10830X6233BP10830Y6233BP10830Z

Common misspellings:
  • 62338P10830
  • 6233BPl0830
  • 6233BP1o830
  • 6233BP10b30
  • 6233BP1083o
  • 6233BP10830

Terminal Assembly for 6233BP10810

Technical Information

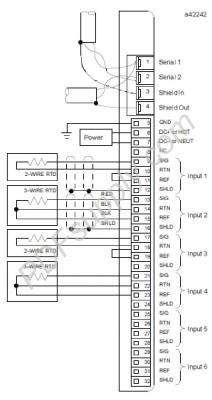

The 6233BP10830 input block terminal assembly has been designed and manufactured by GE Fanuc for a variety of industrial applications. It is made to be a major component in a complete input block that comes with 6 inputs that are compatible with RTDs and that are arranged into 3 isolated pairs. The whole input block is composed of the 6233BP10830 terminal assembly and a compatible electronic assembly that contains most of the electronic parts. The complete block weighs 1.8 kilograms or 4 pounds and its dimensions are 22.44 x 8.89 x 10 centimeters or 8.83 x 3.5 x 3.94 inches. It dissipates 7 Watts of maximum heat when it operates and it comes with 2 LEDs that are the “Unit OK” LED and the “I/O Enabled” LED. The “Unit OK” LED lets the users know if the unit is operating properly and the “I/O Enabled” LED indicates which of the I/O points are in use.



The GE Fanuc 6233BP10830 terminal assembly is rated for an operating temperature range of 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit, a storage temperature range of -40 to 100 degrees Celsius or -40 to 212 degrees Fahrenheit, and a relative ambient humidity level of 5 to 95% (non-condensing) for both operation and storage. The RTD input block and its components, including the 6233BP10830 terminal assembly, support both block to block isolation and group to group isolation. The block to block isolation rating is 1500 Volts and the group to group isolation rating is 300 Volts.
