6233BP10810

★ ★ ★ ★ ★ Rated 4.4/5 Based on 9 ratings.

Rate your purchase of the 6233BP10810

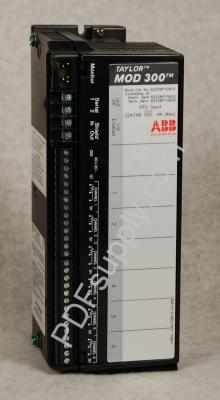

ABB Taylor Mod 300 | 623 624 Series | 6233BP10810 | Image

SKU 2177258  UPC 0872456139258

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6233BP10810 6233BP10810A6233BP10810B6233BP10810C6233BP10810D6233BP10810E6233BP10810F6233BP10810G6233BP10810H6233BP10810I6233BP10810J6233BP10810K6233BP10810L6233BP10810M6233BP10810N6233BP10810O6233BP10810P6233BP10810Q6233BP10810R6233BP10810S6233BP10810T6233BP10810U6233BP10810V6233BP10810W6233BP10810X6233BP10810Y6233BP10810Z

Common misspellings:
  • 62338P10810
  • 6233BPl0810
  • 6233BP1o810
  • 6233BP10b10
  • 6233BP108l0
  • 6233BP1081o
  • 6233BP10810

Block 24/48Vdc RTD Input 6 Channels OHM Copper etc

Technical Information

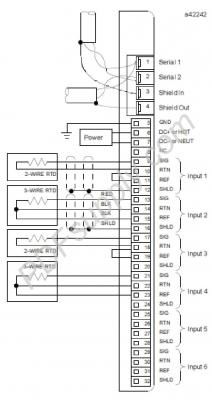

The 6233BP10810 input block is an RTD input block that comes in the 623 and 624 series by ABB. This block comes with 6 input circuits that are arranged in 2 groups. Each one of these groups has 3 input channels. This block can provide isolation and it can be used with different RTDs, such as copper, platinum, or nickel RTDs. The main purpose of this block is to monitor temperature changes and report the data that is collected to a CPU. This data is reported in a specific way, which consists of different degrees Celsius and Fahrenheit units. It can also be reported through counts. The ABB 6233BP10810 RTD input block also supports additional configurable features that include the linearization, input filter time, and alarm threshold settings.



The ABB 6233BP10810 RTD input block comes with diagnostic features that pinpoint different causes of errors that can occur during operation. These errors can be internal fault detection, wiring error detection, and open wire detection, among others. Fault reporting is a function that can be enabled or disabled, depending on the users’ application needs. Enabling and disabling the fault reporting can also be done circuit by circuit. The ABB 6233BP10810 RTD input block is compatible with the PCIM and QBIM modules and it requires the hand-held monitor software that is version 3.5 or later. This block operates with a DC voltage range of 24 to 48 Volts DC and IT comes with LED indicators that show the status of the unit and the inputs. It weighs 1.8 Kilograms.
