6232BP10730

★ ★ ★ ★ ★ Rated 4.9/5 Based on 12 ratings.

Rate your purchase of the 6232BP10730

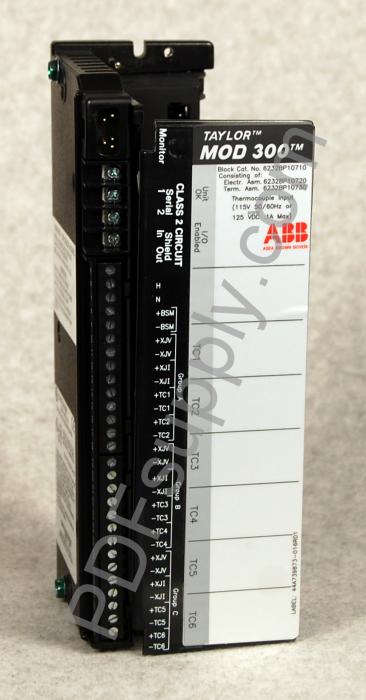

ABB Taylor Mod 300 | 623 624 Series | 6232BP10730 | Image

SKU 2172323  UPC 0344747773255

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6232BP10730 6232BP10730A6232BP10730B6232BP10730C6232BP10730D6232BP10730E6232BP10730F6232BP10730G6232BP10730H6232BP10730I6232BP10730J6232BP10730K6232BP10730L6232BP10730M6232BP10730N6232BP10730O6232BP10730P6232BP10730Q6232BP10730R6232BP10730S6232BP10730T6232BP10730U6232BP10730V6232BP10730W6232BP10730X6232BP10730Y6232BP10730Z

Common misspellings:
  • 62328P10730
  • 6232BPl0730
  • 6232BP1o730
  • 6232BP1073o
  • 6232BP10730

Terminal Assembly for 6232BP10710

Technical Information

The 6232BP10730 terminal assembly is a terminal assembly for one of the I/O blocks that belongs to the Genius I/O discrete and analog blocks product line by GE Fanuc Automation. This part has been designed by ABB. This specific GE/ABB block consists of a block with different inputs that are used mainly with thermocouples. This means the block is used in applications that require the detection of temperature levels and changes in any stage of the application process. This block comes with 2 isolated groups of inputs. Each group has 3 inputs. The whole block weighs 1.8 kilograms and it comes with a maximum heat dissipation rating of 9 Watts. The ABB 6232BP10730 terminal assembly provides a block to block isolation rating of up to 1500 Volts and a group to group isolation of 300 Volts to the whole block.

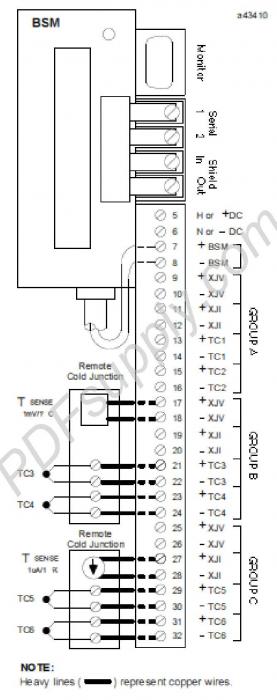

The ABB 6232BP10730 terminal assembly includes all the parts that are used for the connectivity of the block. This assembly is used in conjunction with the electronic assembly that is in charge of performing all the programming functions of the block. The terminal assembly can connect with different kinds of equipment in a complete system. The ABB 6232BP10730 terminal assembly is used with a block that provides an internal cold junction measurement with a temperature range from 0 to 60 degrees Celsius and it has a resolution of less than 0.01 degrees Celsius. This block comes with diagnostic tools and features that consist of open-wire, over and under range, and high and low alarm diagnostics features.
