6232BP10720

★ ★ ★ ★ ★ Rated 4.4/5 Based on 10 ratings.

Rate your purchase of the 6232BP10720

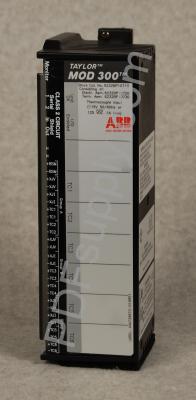

ABB Taylor Mod 300 | 623 624 Series | 6232BP10720 | Image

SKU 2173247  UPC 0369070677902

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6232BP10720 6232BP10720A6232BP10720B6232BP10720C6232BP10720D6232BP10720E6232BP10720F6232BP10720G6232BP10720H6232BP10720I6232BP10720J6232BP10720K6232BP10720L6232BP10720M6232BP10720N6232BP10720O6232BP10720P6232BP10720Q6232BP10720R6232BP10720S6232BP10720T6232BP10720U6232BP10720V6232BP10720W6232BP10720X6232BP10720Y6232BP10720Z

Common misspellings:
  • 62328P10720
  • 6232BPl0720
  • 6232BP1o720
  • 6232BP1072o
  • 6232BP10720

Electronic Assembly for 6232BP10710

Technical Information

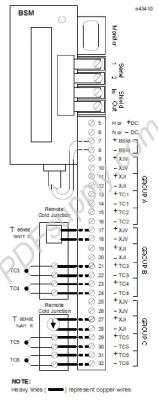

The 6232BP10720 assembly is an electronics assembly that is meant to form an input block when it is connected with the compatible terminal assembly. This assembly has been manufactured by the ABB Taylor to be used with the GE Fanuc Automation blocks from the Genius series. This electronics assembly consists of internal parts that are meant to be installed in the core of the block, and these contain all the circuits that make the block work and that make it able to be programmed. The ABB 6232BP10720 electronics assembly works with a block that is compatible with thermocouples. This block provides different functions, including an internal and external cold junction measurement function. The internal cold junction measures temperatures from 0 to 60 degrees Celsius.



The ABB 6232BP10720 electronics assembly supports 3 isolated pairs of inputs. This electronic assembly comes with transformers that help to isolate the power and optical couplers. These transformers provide signal isolation. The ABB 6232BP10720 electronics assembly is also in charge of the whole accuracy rating of the block. This accuracy depends on multiple factors, including the measurement of the thermocouple millivolt signal and the accurate compensation of the cold junction connections. This assembly has an input update time of 2 seconds and a power supply voltage of 18 to 56 Volts DC with a maximum ripple of 9 percent. This assembly has a weight of about 1.8 Kilograms and it is recommended to have an expert technician install it since it has been made to be adapted to the Genius series blocks.
