6231BP10830

★ ★ ★ ★ ★ Rated 4.5/5 Based on 14 ratings.

Rate your purchase of the 6231BP10830

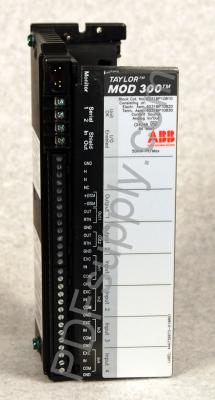

ABB Taylor Mod 300 | 623 624 Series | 6231BP10830 | Image

SKU 2174022  UPC 0184225345419

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6231BP10830 6231BP10830A6231BP10830B6231BP10830C6231BP10830D6231BP10830E6231BP10830F6231BP10830G6231BP10830H6231BP10830I6231BP10830J6231BP10830K6231BP10830L6231BP10830M6231BP10830N6231BP10830O6231BP10830P6231BP10830Q6231BP10830R6231BP10830S6231BP10830T6231BP10830U6231BP10830V6231BP10830W6231BP10830X6231BP10830Y6231BP10830Z

Common misspellings:
  • 623lBP10830
  • 62318P10830
  • 6231BPl0830
  • 6231BP1o830
  • 6231BP10b30
  • 6231BP1083o
  • 6231BP10830

Terminal Assembly for 6231BP10810

Technical Information

The GE Fanuc 6231BP10830 I/O block is a current source I/O block that comes with 2 outputs and 4 inputs. It can connect to external devices that operate on a current level from 4 to 20 milliamps. All 6 of the I/O circuits on the 6231BP10830 I/O block are provided with isolated power, and the block does not need to use a separate power source for any signals in the range of 4 to 20 milliamps. It can check for underrange and overrrange situations in its inputs and outputs and also run diagnostics for other potential problems such as output feedback errors. Additionally, all of the input and output circuits in the 6231BP10830 block support linear scaling values that can be configured individually at different levels for each circuit. All of these linear scaling values can convert the internal scaling values into engineering units that the application that the block is being deployed in can use.



The GE Fanuc 6231BP10830 current source I/O block is compatible with a variety of GE Fanuc devices including the PCIM modules, the QBIM modules, and all of the Genius bus controllers. The isolation ratings on the 6231BP10830 I/O block are 1500 Volts for 1 minute of block to block isolation and 300 Volts RMS for group to group isolation. It can tolerate 5 to 95% relative humidity in its storage and operating environments as long as the humidity does not condense. The operating temperature range for the 6231BP10830 I/O block is 32 to 140 degrees Fahrenheit and the storage temperature range is -40 to 212 degrees Fahrenheit.
