6230BP10820

★ ★ ★ ★ ★ Rated 4.4/5 Based on 11 ratings.

Rate your purchase of the 6230BP10820

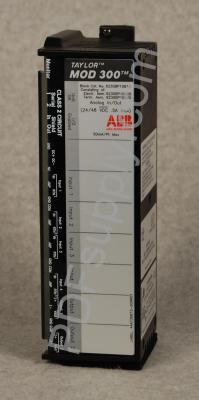

ABB Taylor Mod 300 | 623 624 Series | 6230BP10820 | Image

SKU 2178449  UPC 0573943933242

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$518

164 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$415

Save $103

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6230BP10820 6230BP10820A6230BP10820B6230BP10820C6230BP10820D6230BP10820E6230BP10820F6230BP10820G6230BP10820H6230BP10820I6230BP10820J6230BP10820K6230BP10820L6230BP10820M6230BP10820N6230BP10820O6230BP10820P6230BP10820Q6230BP10820R6230BP10820S6230BP10820T6230BP10820U6230BP10820V6230BP10820W6230BP10820X6230BP10820Y6230BP10820Z

Common misspellings:
  • 623oBP10820
  • 62308P10820
  • 6230BPl0820
  • 6230BP1o820
  • 6230BP10b20
  • 6230BP1082o
  • 6230BP10820

Electronic Assembly for 6230BP10810

Technical Information

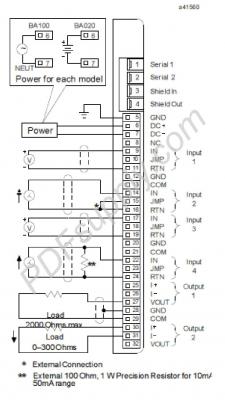

The 6230BP10820 Electronics Assembly belongs to the TRIO series of I/O devices made by ABB. It is a 24/48 Volts DC rated electronics assembly designed for 4 inputs and 2 outputs that are analog I/O. It contains a microprocessor unit that performs the processing and intelligent tasks within the I/O module. It offers standard diagnostics facilities such as low/high alarm detection, open-wire detection, and I/O under range or over range detection for effective performance. It maintains 12 bits of input and output resolution. It is compatible with the ABB 6230BP10830 terminal assembly and the ABB 6230BP10810 I/O block. It has a compact and rugged design and it measures 3 x 8 x 4 inches in dimensions and it weighs 4 pounds.



The 6230BP10820 Electronics Assembly is a removable unit that can be easily installed, removed, or replaced without disrupting the field wiring. It has a digital to analog converter which can be multiplexed between 2 output circuits. When it is physically connected to the terminal assembly, this electronics assembly is grounded. It drives the indicator LEDs of the I/O block based on the processed and identified data that it has. A 6201F block puller can be used to easily unplug the electronics assembly from the terminal block assembly. The 6230BP10820 Electronics Assembly comes with 4 milliseconds of input and output update frequency. It automatically calibrates the analog to digital and digital to analog converter circuits to maintain the accuracy of the module. The accuracy yields within +/- 0.5%. When selecting a proper enclosure for the module, make sure to check whether it provides adequate cooling to the electronics assembly.
