6230BP10730

★ ★ ★ ★ ★ Rated 4.4/5 Based on 12 ratings.

Rate your purchase of the 6230BP10730

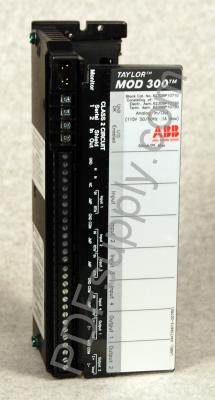

ABB Taylor Mod 300 | 623 624 Series | 6230BP10730 | Image

SKU 2176257  UPC 0666322147726

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6230BP10730 6230BP10730A6230BP10730B6230BP10730C6230BP10730D6230BP10730E6230BP10730F6230BP10730G6230BP10730H6230BP10730I6230BP10730J6230BP10730K6230BP10730L6230BP10730M6230BP10730N6230BP10730O6230BP10730P6230BP10730Q6230BP10730R6230BP10730S6230BP10730T6230BP10730U6230BP10730V6230BP10730W6230BP10730X6230BP10730Y6230BP10730Z

Common misspellings:
  • 623oBP10730
  • 62308P10730
  • 6230BPl0730
  • 6230BP1o730
  • 6230BP1073o
  • 6230BP10730

Terminal Assembly for 6230BP10710

Technical Information

The 6230BP10730 Terminal Assembly belongs to the ABB TRIO family of current source analog I/O blocks. It is used to perform the field wiring of the whole I/O block. It provides screw-type terminals with durability and reliability for power connections as well as for connections for the field devices. The 6230BP10730 Terminal Assembly comes with a 0 to 60 degrees Celsius operating temperature range, a -40 to 100 degrees Celsius storage temperature range, and a 5% to 95% non-condensing ambient humidity range. This module must be permanently installed in the I/O block to provide the wiring interface between the I/O block and field devices. It is located between the electronic assembly and the I/O.



The 6230BP10730 Terminal Assembly has mechanical keying that allows it to be used only with its compatible electronics assembly. Its 32 screw-type terminals are reserved for different purposes and connections. Terminals 1 to 4 can be used as TRIO block field bus connectors. The power supply must be connected to Terminals 6 and 7. All of the field devices can be connected to Terminal 11 through 32. Terminals 1 to 4 of the module accept 1 AWG #12 gauge wire or 2 AWG #14 wires. Terminals 5 to 32 can accept AWG #14 to AWG #22 wires. The 6230BP10730 Terminal Assembly is designed to work with an ABB 6230B 115 Volts AC analog I/O block. Its frequency rating is 50 to 60 Hertz. It is advised to pre-configure the module with its compatible electronics assembly by using a handheld monitor before installing the module. This module provides the ideal solution for safe and reliable field wiring.
