6230BP10710

★ ★ ★ ★ ★ Rated 4.6/5 Based on 13 ratings.

Rate your purchase of the 6230BP10710

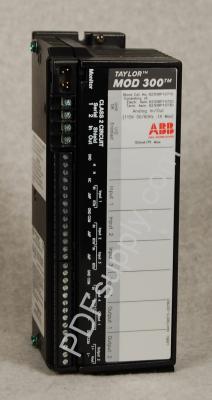

ABB Taylor Mod 300 | 623 624 Series | 6230BP10710 | Image

SKU 2175425  UPC 0555853206463

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$2286

209 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$1829

Save $457

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6230BP10710 6230BP10710A6230BP10710B6230BP10710C6230BP10710D6230BP10710E6230BP10710F6230BP10710G6230BP10710H6230BP10710I6230BP10710J6230BP10710K6230BP10710L6230BP10710M6230BP10710N6230BP10710O6230BP10710P6230BP10710Q6230BP10710R6230BP10710S6230BP10710T6230BP10710U6230BP10710V6230BP10710W6230BP10710X6230BP10710Y6230BP10710Z

Common misspellings:
  • 623oBP10710
  • 62308P10710
  • 6230BPl0710
  • 6230BP1o710
  • 6230BP107l0
  • 6230BP1071o
  • 6230BP10710

Block 115Vac Analog 4 Inputs / 2 Outputs 6 points

Technical Information

The 6230BP10710 Analog I/O Block belongs to the TRIO Series of products that are designed by ABB. It comes with 4 inputs, 2 outputs, and a 115 Volts AC power supply. This module is used to interface the field devices to the programmable logic controller or PLC. The electronics assembly of the module consists of a microprocessor for intelligent processing. The characteristics of the output channels on the block include 12 bits of output resolution, a range selection feature, 4 milliseconds of output update frequency, and output diagnostics facilities. The 6230BP10710 Analog I/O Block supports hand-held monitors that can be used to configure its more advanced features.



The 6230BP10710 Analog I/O Block, which is shipped as a complete module, consists of an electronics assembly and a terminal assembly. Its recommended operating temperature range is 0 to 60 degrees Celsius. The diagnostics facilities offered by this module include open wire detection, feedback error detection, and under range/over-range detection. It supports bus switching module configurations. The enclosure of the module is made of cast aluminum. The approximate weight of the module is 4 pounds. The 6230BP10710 Analog I/O Block comes with 2 indicator LEDs to visually indicate the status of the module. Its typical terminal drift at 25 degrees Celsius is 10 PPM per degree Celsius and the maximum thermal drift is 40 PPM per degree Celsius. This module can automatically calibrate its analog to digital converter and its digital to analog converter to compensate for the changes which occur due to the thermal drift. The maximum accuracy of the module at 25 degrees Celsius is +/- 0.5% of the full scale.
