IC200CPUE05

★ ★ ★ ★ ★ Rated 4.7/5 Based on 20 ratings.

Rate your purchase of the IC200CPUE05

SKU 2174453  UPC 0902805987992

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

New

$2548

14 In Stock

✓  2 Year PDF Supply Warranty

*Need a Specific Revision?

Ships .

Reman

$1379

Save $1,169

8 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$1104

Save $1,444

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the IC200CPUE05 IC200CPUE05-AAIC200CPUE05-ABIC200CPUE05-ADIC200CPUE05-BEIC200CPUE05-CFIC200CPUE05-CGIC200CPUE05-DGIC200CPUE05-EGIC200CPUE05-EHIC200CPUE05-FHIC200CPUE05-GJIC200CPUE05-GKIC200CPUE05-HKIC200CPUE05AIC200CPUE05BIC200CPUE05CIC200CPUE05DIC200CPUE05EIC200CPUE05FIC200CPUE05GIC200CPUE05HIC200CPUE05IIC200CPUE05JIC200CPUE05KIC200CPUE05LIC200CPUE05-LTIC200CPUE05MIC200CPUE05NIC200CPUE05OIC200CPUE05PIC200CPUE05QIC200CPUE05RIC200CPUE05SIC200CPUE05TIC200CPUE05UIC200CPUE05VIC200CPUE05WIC200CPUE05XIC200CPUE05YIC200CPUE05Z

Common misspellings:
  • 1C200CPUE05
  • IC2o0CPUE05
  • IC20oCPUE05
  • IC200CPUEo5
  • IC200CPUE05

Technical Specifications for IC200CPUE05

ManufacturerGE Fanuc
SeriesVersamax
Part NumberIC200CPUE05
Product TypeCPU module
I/O Points2048
Serial PortsRS-232/RS-485
Current650 mA
Voltage3.3V DC
Memory128 KB
SRTP Server8 connections

Product Description


The IC200CPUE05 is a CPU designed by GE for the VersaMax series. The IC200CPUE05 has a built-in interface, which allows it to serve as the system controller for a maximum of 64 modules with up to 2048 I/O points.

The IC200CPUE05 has two serial ports that are software configured for SNP and RTU slave, Serial I/O operation, and for Local Station Manager operation (Port 1 only). When either port is being used for RTU, an automatic switch to SNP slave mode is required. If the IC200CPUEO5 is in Stop mode and the CPU is configured for Serial I/O, a port will automatically return to SNP slave. Port 2 to can offer power to an external device if power requirement is 100 mA or less at 5VDC. Port 1 is an RS-232 port with a 9-pin female connector. If Port 1 is configured for CPU use, it can be forced by using the Ethernet Restart pushbutton. Port 1 will stay in its current mode until PLC is power cycled or the Ethernet Restart pushbutton has been pressed. Port 2 is an R3-485 port with a female D-sub connector that has 15-pins. The port can be used for program, configuration, and updates and can be attached directly to an RS-485/RS-232 adapter.

The built-in Ethernet interface of the IC200CPUE05 makes communication on a 10BaseT network possible. The IC200CPUE05 is compatible for half and full-duplex operation, usually without any user configuration due to the automatic sensing of the CPU. Accessing CPU data from a host computer or other GE Fanuc PLCs can be processed due to this built-in interface feature.

The IC200CPUE05 module is a user-configurable CPU module manufactured by GE Fanuc as a member of the VersaMax product line. It is part of the VersaMax product family, and it provides all the PLC functionalities in 1 small device.  This CPU module works with a maximum of 64 modules and up to 2048 I/O points. It also comes with 2 serial ports which are RS-485 and RS-232 ports that are used for active serial communication. The IC200CPUE05 CPU module comes with a built-in Ethernet Interface and it can be configured seamlessly by the use of programmer software. Other notable specifications of this module include a system flash memory along with a battery-backed RAM. The current rating of this unit is 650 milliamps and it has an input voltage rating of 3.3 Volts DC. It supports DIN rail mounting and it has a configurable memory capacity of 128 KB. The accuracy of this module’s real-time clock is 100 ppm with a delay of -/+ 9 seconds.

The GE Fanuc VersaMax IC200CPUE05 CPU module has a super capacitor which can power the memory for about 1 hour if the power fails. It comes with a run and stop switch to help control its operation and applications. It can also be used to process the floating point data functions in the system. The GE Fanuc IC200CPUE05 CPU module has 2 sets of LED indicators that are located on the lower right corner and the top corner of the module. The LED indicators include the “OK,” “PWR,” “FAULT,” “FORCE,” “RUN,” “PORT 1,” and “PORT 2,” indicators which turn on when the module is powered on and which also send various update messages to the operators. This CPU module supports the instruction list and ladder diagram programming languages.

Technical Information

The IC200CPUE05

The IC200CPUE05

Troubleshooting IC200CPUE05

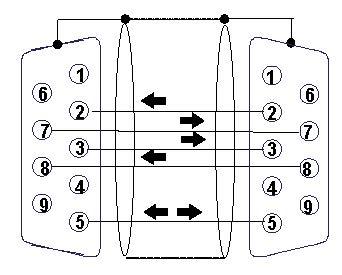

Troubleshooting information is available on IC200CPUE05's website page; it also includes a datasheet user-manual and a wiring diagram.

Price and Availability for IC200CPUE05

Price for IC200CPUE05 is available by calling 1-800-360-6802 or by filling out our "fast quote". PDF Supply has over 30 years of experience with PLCs and has experience with the GE Fanuc Versamax Series dating back to 1995. IC200CPUE05 comes with a minimum 1 year PDF Supply warranty. Returns are accepted for most unopened items. It does require pre-approval and RMA.

Repair your IC200CPUE05

PDF Supply can repair your IC200CPUE05 in 3-5 business days. And PDF Supply stands by all of its repairs with a 2 year customer satisfaction warranty.
