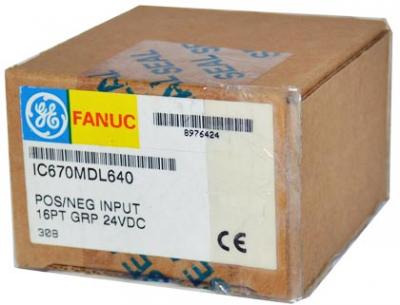

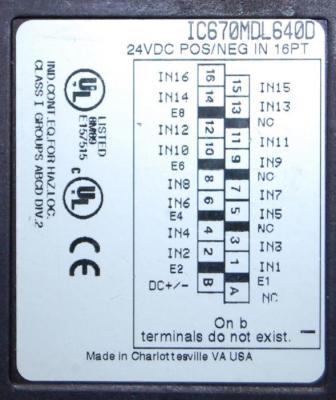

24VDC Pos./Neg. Logic Input, 16 Point, Grouped MDL640 GE Fanuc Field Control IC670 IC670MDL
Technical Information
The GE Fanuc IC670MDL640 discrete input module is a member of the GE Field Control I/O module series. This module is a positive/negative input module designed to offer 16 separate inputs driven by negative or positive logic. It has a voltage rating of 24 Volts DC and an input voltage ranging from 0 to 30 Volts DC. At 24 Volts DC, this module has a user input current of 7.5 milliamps per point. Other notable input characteristics include an on-state current of 3.0 to 8 milliamps and an off-state current of 0 to 1.5 milliamps. It has an on and off response time of 6 milliseconds (typical) and 10 milliseconds (maximum). The IC670MDL640 input module has a maximum power supply of 83 milliamps at maximum, and the current it draws from the Bus Interface Unit or BIU is 75 milliamps typical for all the points that are powered on.
The GE Fanuc IC670MDL640 discrete input module features 1 LED indicator per input point to show the status of the individual input points. There is also a “PWR” LED that indicates the presence of the field power as well as the backplane power. The IC670MDL640 discrete input module comes with either positive or negative input logic that is available for all 16 input points. With either type of logic, the signals produce logic 1 whenever the switch is closed. Selecting the -/+ operation depends on the external power source connected to the input and output terminal block. The inputs are intended to receive the current from various input devices and supply it to the negative or common power bus. On the other hand, the negative inputs provide the current to various input devices and also receive the current from the positive or common power bus.
