GE / IP FANUC Series 90/30 In Stock
IC670ALG620
SKU 2170211 UPC 0799705793262
All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.
PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.
Other Available Revisions for the IC670ALG620 IC670ALG620AIC670ALG620BIC670ALG620CIC670ALG620DIC670ALG620EIC670ALG620FIC670ALG620GIC670ALG620HIC670ALG620IIC670ALG620JIC670ALG620KIC670ALG620LIC670ALG620MIC670ALG620NIC670ALG620OIC670ALG620PIC670ALG620QIC670ALG620RIC670ALG620SIC670ALG620TIC670ALG620UIC670ALG620VIC670ALG620WIC670ALG620XIC670ALG620YIC670ALG620Z
Common misspellings:
- 1C670ALG620
- IC67oALG620
- IC670A1G620
- IC670ALG62o
- IC670ALG620

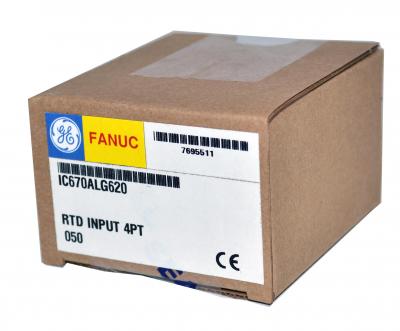

RTD, 4 Channel, Isolated 3 wire GE Fanuc Field Control ALG620 Module IC670A IC670AL IC670ALG
Technical Information
The GE Fanuc IC670ALG620 analog input module is a 4-channel analog RTD input module made for the Genius Field Control system. The GE Fanuc Field Control station is a combination of a highly modular distributed I/O and control system consisting of a Bus Interface Unit (BIU) and the corresponding I/O modules that meet the host architecture requirements. The IC670ALG620 analog input module belongs to the Genius Field Control I/O module family, but unlike other modules in its series, the IC670ALG620 analog input module only accepts inputs from either 3-wire or 4-wire independent RTDs (these can be platinum, nickel, nickel/iron, or copper RTDs). The IC670ALG620 analog input module is installed on a terminal block, which provides easy and simplified field-wiring, and it is enclosed with a sturdy and compact aluminium housing.
Standard module features include user-selectable resistance measurements in any of the following units; tenths of degrees Celsius, degrees Fahrenheit, or Ohms, an adjustable resistance measurement range from 0 to 500 Ohms, automatic reporting of faults including high/low alarm, under-range/over-range, and open-wire conditions, dual data acquisition rates, configurable channel activation settings, and support for optional discrete I/O for control and status. The IC670ALG620 analog input module has 4 individually-isolated input circuits that receive analog input signals from 3-wire or 4-wire RTDs and then convert the analog signal to a 15-bit digital value for the block microprocessor. The IC670ALG620 analog input module, by default, performs automatic calibration open startup, and this process is repeated automatically every minute to compensate for ambient temperature changes. The IC670ALG620 analog input module requires no loop power for operation because the excitation current for RTDs is automatically provided by the module. This module also has an LED status indicator that shows the operating status of the module.
